Products / TSP Series Air Classifiers
TSP series are designed for high pressure values. Wide variety of applications installed up to now commonly include calcite, lime (quick/slaked lime), kaolin, and magnesite classifying plants.
Certain level of particle size can be limited by adjustable rotor rpm. and an air valve. TSP series are sufficient for particle size range of 10-300µm. New generation TSP series operate together with a jet pulse filter and a fan in open circuit.
Over years, system optimization is applied in order to increase the classifying efficiency values. Equipment selection is done due to the material properties and capacity requirements. Depending on the material properties and particle size distribution of the feeding material, measured classifying efficiency value of actual systems is ~40%. Additional air intakes increase the efficiency.
It is a common fact that, one of the most important factors that affects the capacity and the reliability of the classifying systems is the prevention of coarse particles in the final product. TSP series are equipped with mechanical labyrinth systems for coarse particle prevention in high pressure values. Labyrinth systems for TSP series have a specific design for improved coarse particle resistance. Additional automatic pneumatic circuit cutters are placed considering the case of power cuts.

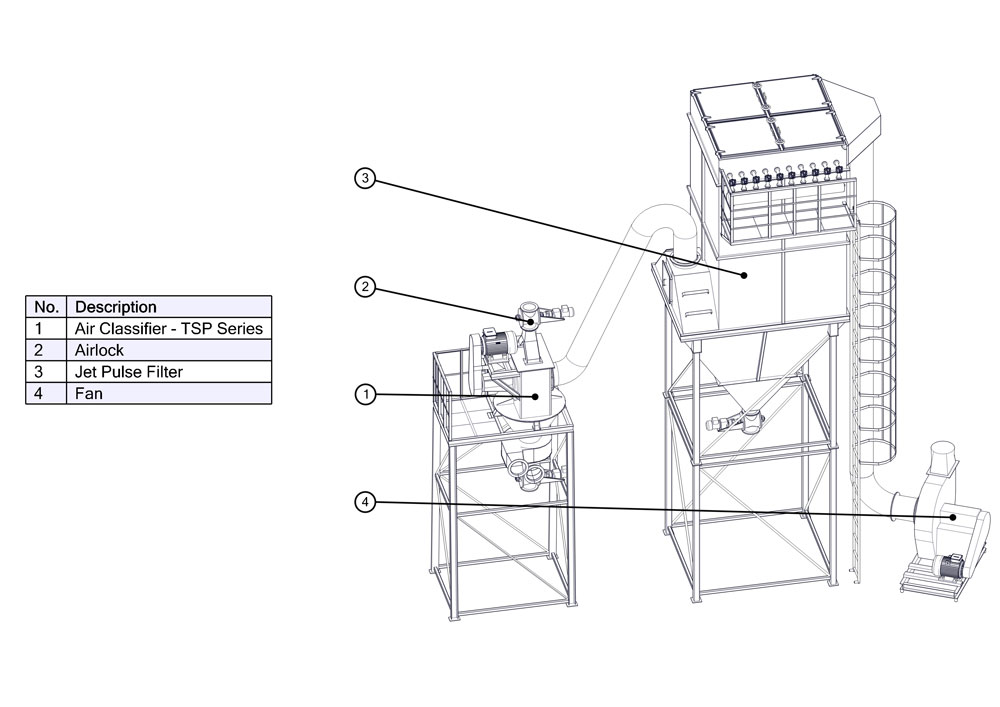

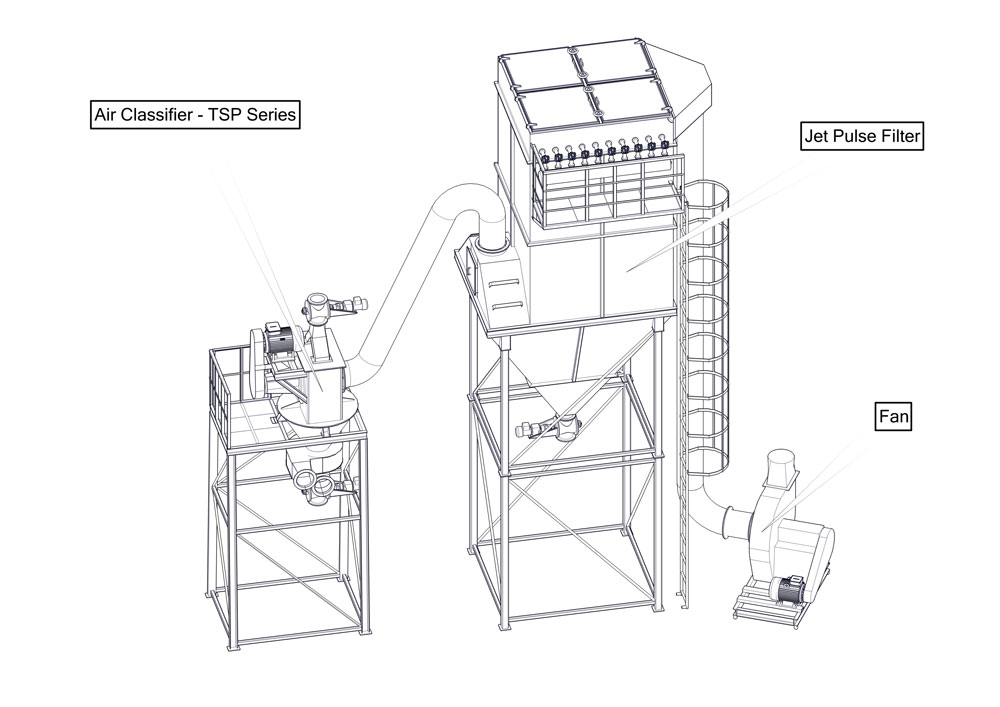

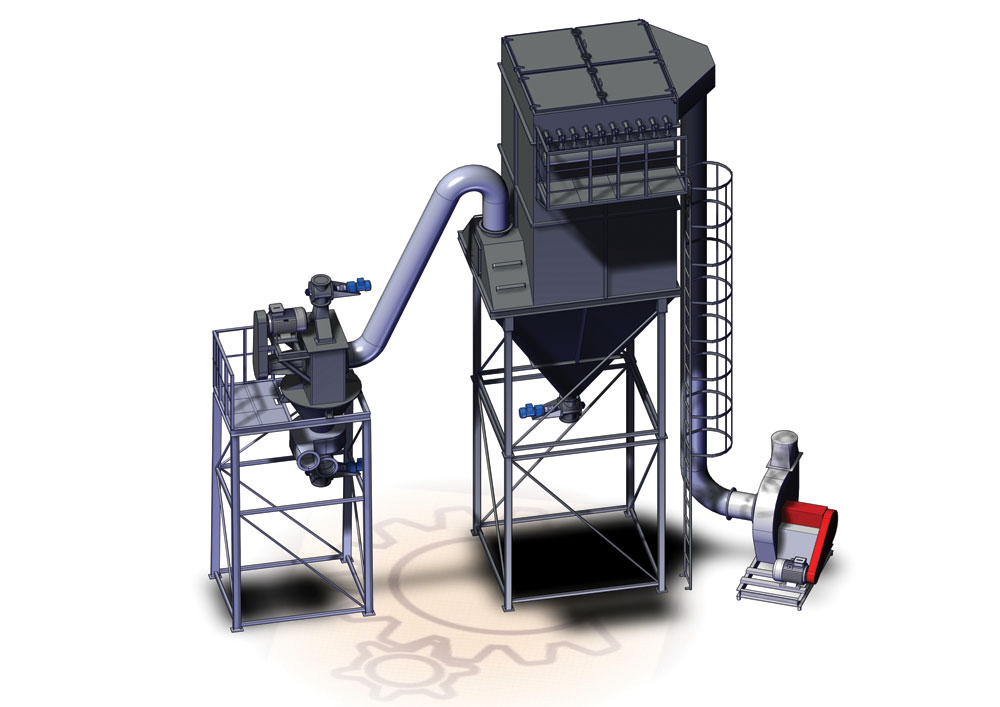

Basic classifying system consists of;
- Feeding Unit: Material is fed by rotary vane feeders.
- Classifying Unit: TSP series dynamic air classifier.
- De-dusting System: De-dusting is done by a jet pulse filter.
- Air Circulation: Air is circulated by an industrial radial fan with relevant volume rate and pressure.
